Zirconia (ZrO₂) Full Ceramic Deep-Groove Ball Bearings
Zirconia ceramic bearings use ZrO₂ ceramic rings and rolling elements to provide corrosion resistance, electrical insulation and non-magnetic performance in demanding industrial environments. Learn how to select ceramic bearings for corrosive environments. For wet applications, see ceramic bearings for water and seawater. For lubrication guidance, see ceramic bearings without lubrication. DISLAB Precision supplies full ceramic deep-groove configurations in a broad range of standard sizes. For a broader explanation of what zirconia ceramic bearings are, see the technical guide.
ZrO2 full ceramic deep groove ball bearings for corrosive, electrically insulated, non-magnetic and reduced-lubrication and application-specific dry-running environments where standard steel bearings are not suitable.
Full ceramic ZrO2 bearing for special operating environments.
Compact Technical Summary
A fast engineering view for RFQ screening before selecting bearing type, series, model and working environment.
Product Overview
Zirconia full ceramic deep groove ball bearings are designed for specialized industrial conditions where corrosion, water, chemicals, magnetism or lubricant contamination can reduce the service life of standard metal bearings.
The zirconia full ceramic deep groove ball bearing features a precisely engineered structure where every component is optimized for harsh-environment performance. Each element is manufactured to tight tolerances, ensuring smooth operation and extended service life in demanding industrial applications.
This product is engineered for precision and specialized environment applications. It is not intended as a low-cost replacement for standard steel bearings; it should be selected when corrosion resistance, electrical insulation, non-magnetic behavior or validated reduced-lubrication or dry-running capability is required. For a direct material comparison, see ZrO₂ vs Si₃N₄ ceramic bearings.
Key Performance Advantages
High Temperature Capability
PTFE, PEEK and cage-less versions support different temperature requirements.
Chemical Resistance
Zirconia resists many acids, alkalis, salts and industrial solvents.

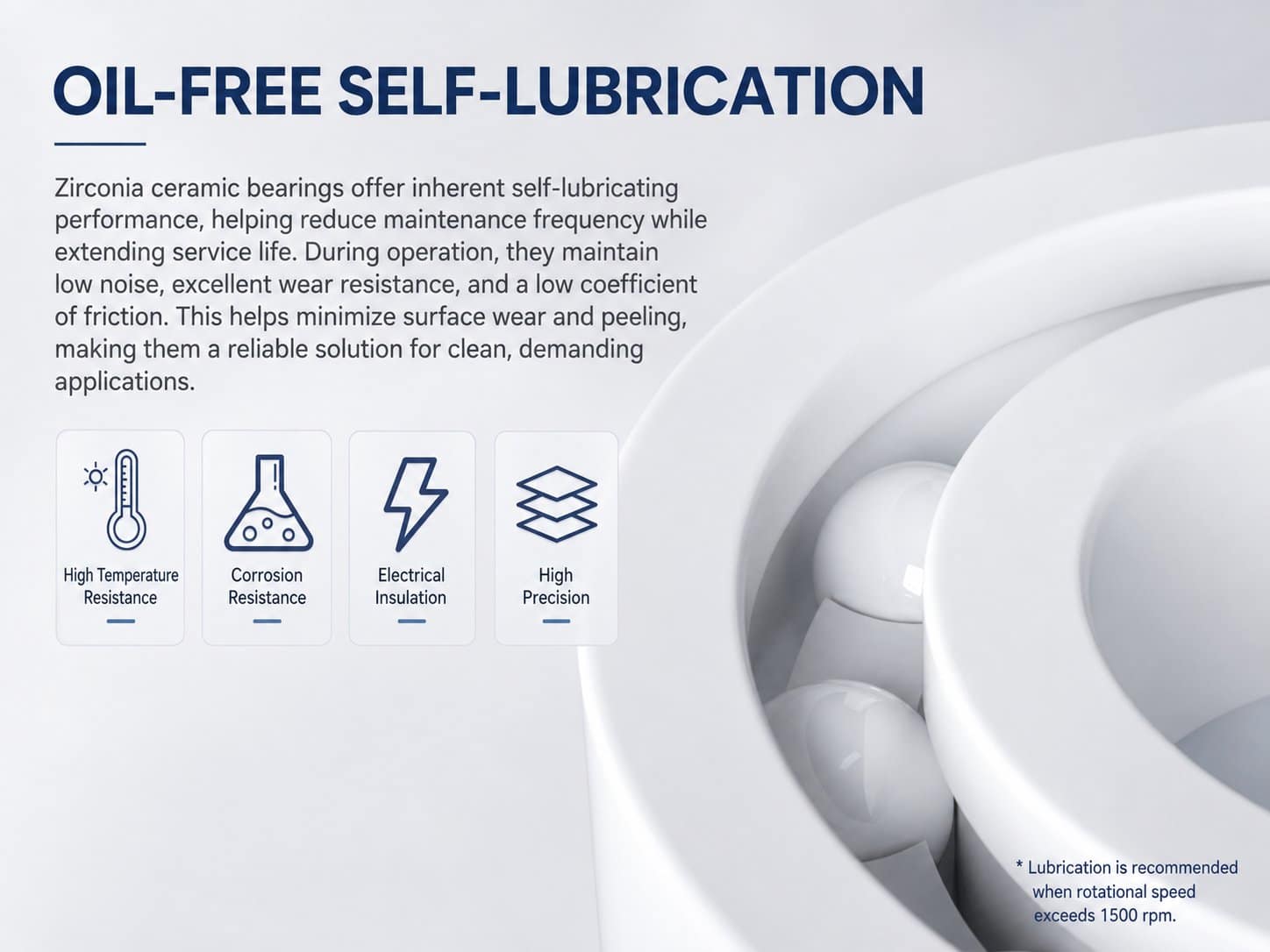

Low Maintenance
Ceramic rolling surfaces with PTFE or PEEK help reduce regular grease use.

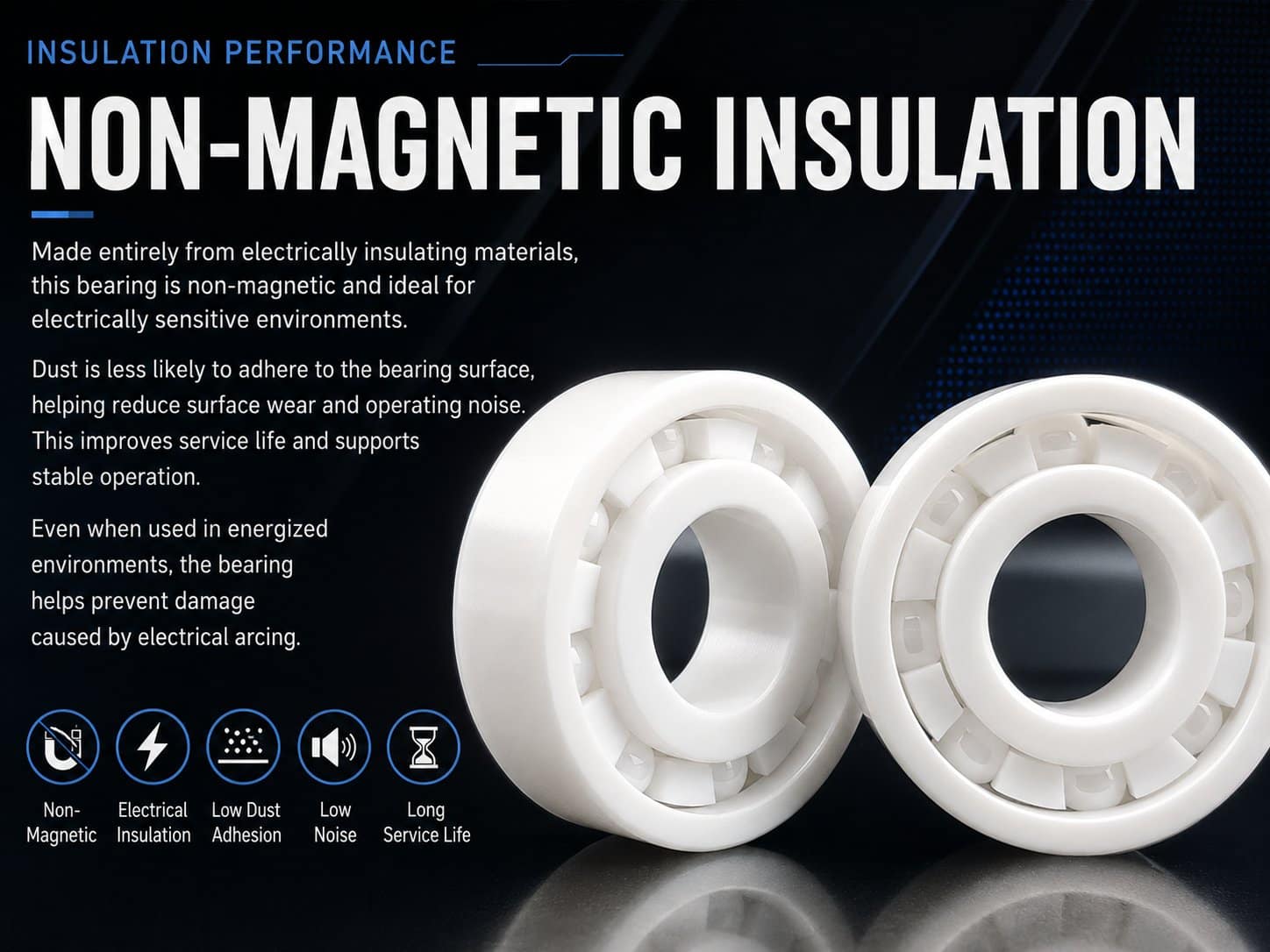

Electrical Insulation
Useful where conductive metal bearings may create unwanted electrical contact.
Non-Magnetic Performance
Suitable for precision electronic, testing and magnetically sensitive equipment.

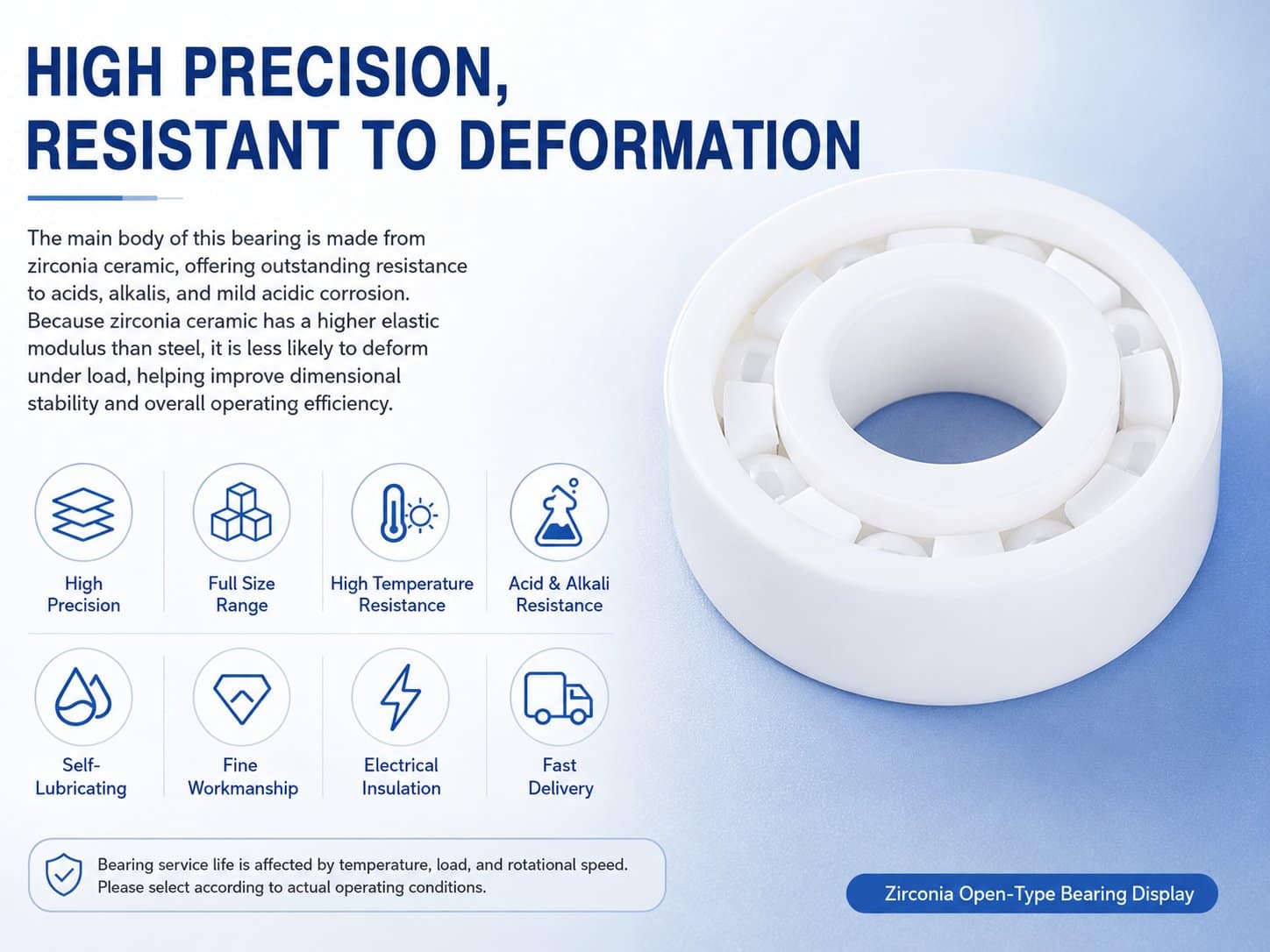

High Rigidity
Maintains dimensional stability under appropriate load and thermal cycling.

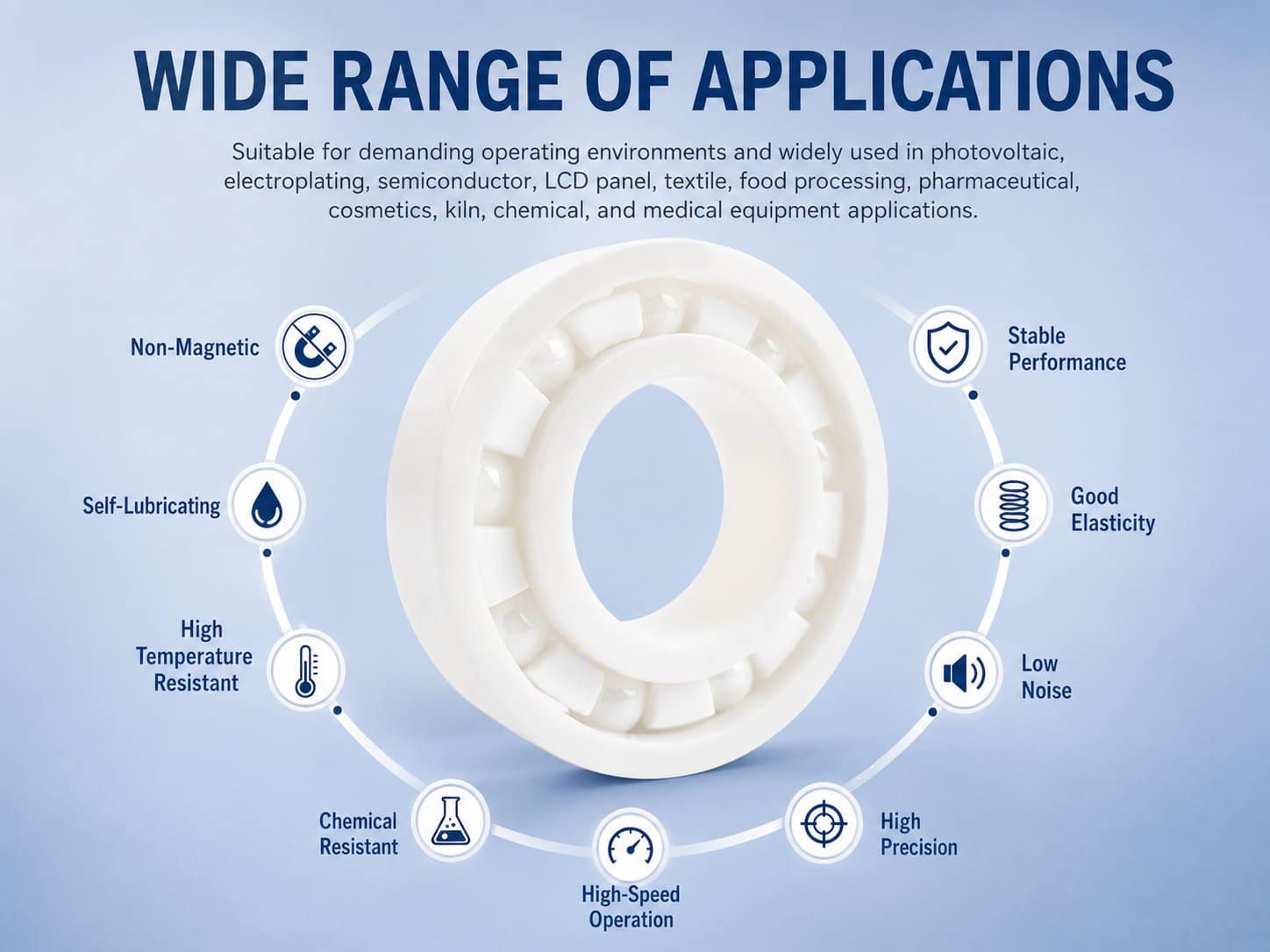

Application Industries
Zirconia ceramic bearings are selected where moisture, chemicals, electrical insulation, non-magnetic behavior or clean operation are critical selection factors.
Industrial machinery
Special automation and machinery with limited lubrication access.
Food machinery
Clean production lines where lubricant contamination should be reduced.
Chemical equipment
Chemical processing, electroplating and washdown equipment.
Medical equipment
Laboratory, analytical and test instruments requiring clean rotation.
Semiconductor equipment
Electronic and photovoltaic systems sensitive to magnetic or conductive components.
High-temperature systems
Special applications where PTFE, PEEK or cage-less configurations must be validated.
Technical Performance and Application Comparison
- High temperature capability: PTFE cage version up to ~180°C, PEEK cage version up to ~240°C and cage-less versions for higher application-specific temperatures.
- Chemical resistance and low water absorption: suitable for chemical processing, marine, laboratory, food-grade and electroplating environments.
- Reduced-lubrication capability and low-maintenance design: zirconia full ceramic bearings may operate with reduced lubrication or under dry-running conditions in suitable applications, depending on speed, load, cage design and environment.
- Electrical insulation and non-magnetic performance: suitable for precision instruments, electronic systems and testing equipment.
vs metal bearings
Better corrosion resistance, electrical insulation, non-magnetic behavior and reduced-lubrication capability in suitable special environments.
vs standard plastic bearings
Higher rigidity, better dimensional stability and higher temperature capability under suitable load and speed conditions.

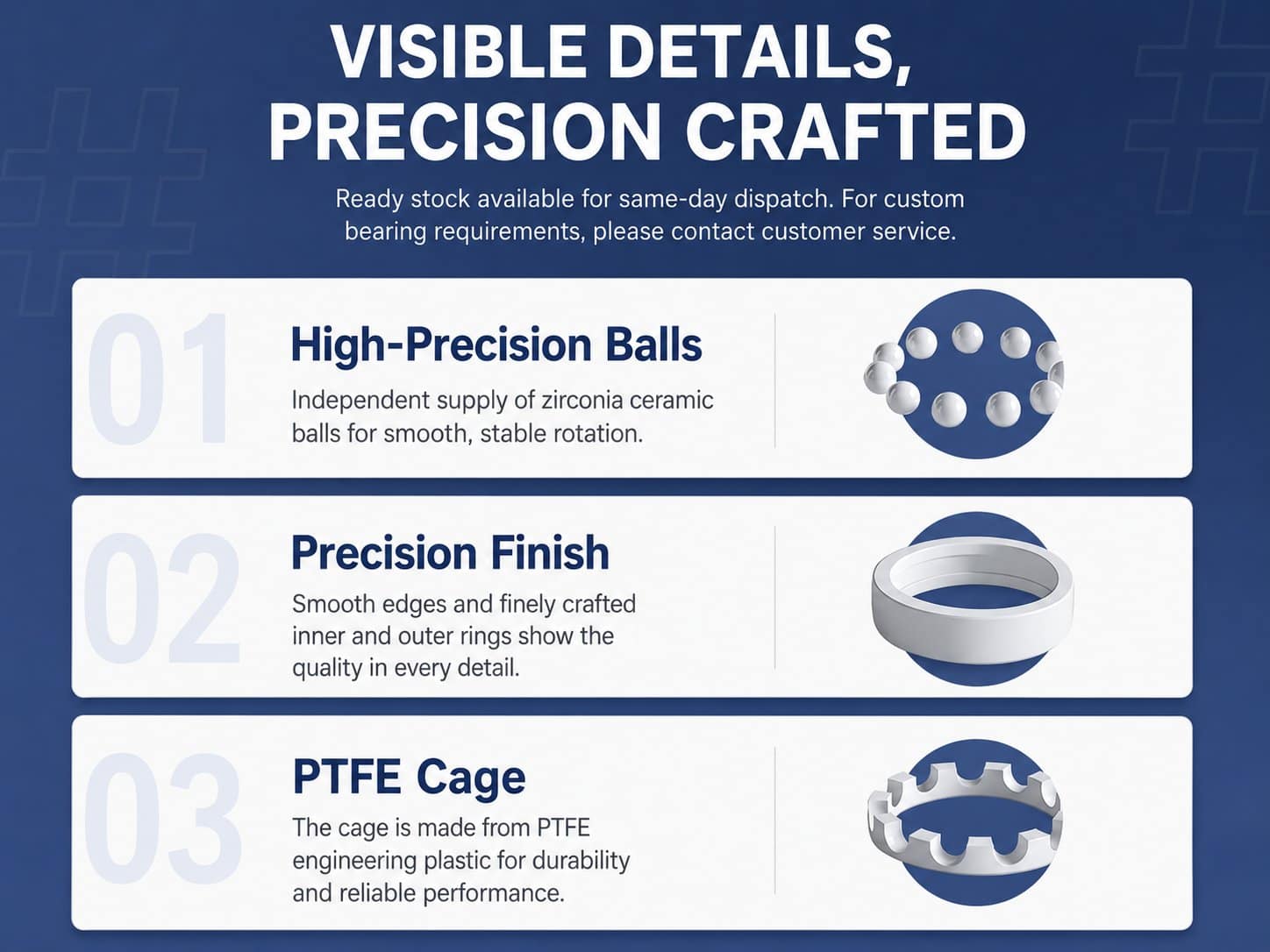

Product Structure & Configuration
Product Variants
Open Type (PTFE Cage)
Suitable for relatively clean environments requiring low friction operation and easy visual inspection.
Full Ball Type (Cage-less)
Designed for high load distribution and specific high-temperature or chemical immersion environments. Compare full-complement vs caged ceramic bearings when selecting for speed, load, temperature, lubrication and cage limitations.
Double Sealed Type
Designed for moisture, dust or chemical exposure where PTFE seals help protect the internal structure.
Advantages and Application Limits
✔ Advantages
Prevents corrosion failure in chemical and seawater environments, reduces magnetic interference, eliminates lubrication contamination in clean production lines, improves stability under thermal cycling and reduces maintenance frequency in critical equipment.
✖ Limitations
Not recommended for heavy shock loads, extremely high-speed mechanical systems without engineering validation, improper lubrication-free high-friction assemblies or general heavy-duty mechanical systems. Follow the zirconia ceramic bearing installation guide for handling, fit and mounting precautions.
- Proper selection based on load and operating conditions is required.
- Consult our technical team for application-specific guidance before using in harsh or high-speed assemblies.
Electrical insulation and non-magnetic properties for precision instruments, electronics and testing systems.
Reduced-lubrication capability may help reduce contamination risk in suitable clean-production and special industrial applications, depending on speed, load, cage design and environment.
Zirconia Ceramic Bearing Size Selection Table
Select a bearing type, series and model to confirm the inner diameter, outer diameter and width. To keep this section compact, the detailed size rows are not expanded by default. Choose a category, series, model, or use quick search to display matching specifications.
Select a zirconia ceramic bearing category
Detailed model dimensions will appear after you select a type, series, model, or enter a search keyword.
Dimension unit: mm. Width values such as 3/4 or 2.5/4 indicate optional width versions. Please confirm cage material, sealing structure, clearance, precision grade and quantity when sending your RFQ.
| Type | Series | Model | Inner Dia. | Outer Dia. | Width | RFQ |
|---|
Industrial Problems Solved
- Prevents corrosion failure in chemical and seawater environments.
- Reduces magnetic interference in precision electronic systems.
- Eliminates lubrication contamination in clean production lines.
- Improves stability under thermal cycling conditions.
- Extends service life in harsh chemical exposure environments.
- Reduces maintenance frequency in critical equipment.
From Specification to Shipment
Selecting the right ceramic bearing is only part of the purchasing process. For B2B orders, dimensions, configuration, inspection requirements, packing and shipment details should also be confirmed before production.
DISLAB Precision supports specification review for standard and application-specific zirconia ceramic bearing requirements so that purchasing details can be clarified before an order moves into production.
Manufacturing & Customization
Zirconia ceramic bearings can be supplied in standard or application-specific configurations according to the required bearing size, internal structure and operating conditions.
For non-standard requirements, buyers can provide a drawing, reference bearing, target dimensions or application details for technical review before quotation.
Depending on the application, configuration details such as bearing dimensions, cage material, full-complement or caged design, and other structural requirements can be reviewed before production.
- Standard and custom-dimension evaluation
- PTFE or PEEK cage options where applicable
- Full-complement or caged configuration review
- Drawing-based specification review
- Sample, small-batch and production-order evaluation
Have a special size or operating requirement? Send the bearing model, dimensions or drawing for review.
Specification Confirmation Before Production
Before a production order is released, the key purchasing specifications can be confirmed against the quotation, bearing designation or customer drawing.
This helps reduce misunderstandings involving dimensions, cage configuration, quantity and application requirements, particularly for non-standard ceramic bearings.
- Requirement
- Specification Review
- Quotation
- Confirmation
- Production
For custom bearings, critical dimensions and operating conditions should be confirmed before production rather than relying only on a general bearing description.
Quality Inspection Before Shipment
Before shipment, the finished order can be checked against the confirmed purchasing specification to verify that the supplied bearings match the agreed model and configuration.
Typical pre-shipment checks may include dimensional verification, appearance, bearing configuration, quantity and packaging condition according to the order requirements.
- Model & Configuration
- Confirm the ordered bearing type and configuration.
- Key Dimensions
- Verify critical dimensions against the confirmed specification or drawing where required.
- Visual Condition
- Check visible surfaces and obvious handling damage before packing.
- Quantity
- Confirm shipment quantity against the order.
- Final Packing
- Confirm that the bearings are protected and packed for international transport.
If your project requires a specific inspection item or documentation, include it in the RFQ so feasibility can be reviewed before order confirmation.
Packaging for International Shipment
Ceramic bearings require appropriate protection during handling and international transportation. Packaging is selected according to bearing size, quantity and shipment method.
Bearings can be protected individually or in suitable inner packaging, then placed in cartons with additional outer protection for international shipment where required.
- Individual or grouped protective packing
- Inner boxes or protective separators where appropriate
- Export cartons for international transportation
- Additional pallet or outer protection for larger shipments when required
Special labeling or other packaging requirements should be confirmed before order placement.
Samples, Production Orders & Lead Time
Sample availability and production lead time depend on the bearing model, dimensions, configuration and order quantity.
Standard specifications can generally be evaluated more quickly, while custom ceramic bearings may require additional specification confirmation before production scheduling.
For an accurate lead-time estimate, send the required model or dimensions, quantity and destination together with the RFQ.
Sample / Trial Order
For fit, material or application evaluation where available.
Small-Batch Order
For initial production, testing or specialized equipment requirements.
Production Order
Specifications, quantity, packing and shipment details are confirmed before production.
Shipping & Export Support
Shipment method can be selected according to order size, urgency and destination.
Small samples or urgent orders may be suitable for international courier or air shipment, while larger production orders can be evaluated for air or sea freight.
Shipping details are confirmed together with the order so that packaging and transportation can be planned appropriately.
Please provide the destination country when requesting a quotation if you would like shipping options to be considered.
Why Choose DISLAB Precision
Application-Based Review
Specifications can be reviewed against the actual operating requirement.
Drawing & Custom Support
Non-standard dimensions and configurations can be evaluated before quotation.
B2B Export Support
Order confirmation, packing and international shipment details can be coordinated for overseas buyers.
Frequently Asked Questions (FAQ)
Q1: What is the maximum operating temperature?
Depends on configuration: PTFE cage (~180°C), PEEK cage (~240°C), cage-less versions suitable for higher application-specific temperatures.
Q2: Is it resistant to chemicals?
Yes, it is resistant to most acids, alkalis, and solvents, except strong oxidizing acids and high-concentration hydrogen peroxide.
Q3: Does it require lubrication?
In most applications, no lubrication is required due to low friction ceramic surfaces and PTFE/PEEK cage options.
Q4: Can it be used in seawater environments?
Yes, zirconia ceramic provides excellent resistance to seawater corrosion.
Q5: Is it suitable for heavy load applications?
It is intended for precision and special environment applications, not heavy shock load systems.
Q6: Can I customize structure and materials?
Yes, cage type, sealing type, and structural configuration can be customized to meet your specific requirements.
Related Precision Products
Explore real products that may support the same corrosion-resistant, precision or custom-engineered application.
What to Send for a Faster Quote
To help us review your zirconia ceramic bearing requirement more efficiently, please provide as much of the following information as available:
- Bearing model or reference number
- Inner diameter × outer diameter × width
- Required quantity
- Cage or structural requirement, if applicable
- Operating temperature and environment
- Speed, load or other critical operating conditions if known
- Drawing, photo or reference sample for custom requirements
- Destination country
